Product Details:
|
| Features: | Light Steel Frame Structure Workshop | Usage: | Workshop Buildings For Auto Service Shop |
|---|---|---|---|
| Type: | Clean Span Steel Structure Workshop | Surface Treatment: | Painting |
| Shot Blasting Level: | Sa 2.5 | Service Life: | 50 Years |
| Wall And Roof: | Steel Cladding Sheet | Working Scope: | Design,Fabrication, Installation |
| High Light: | steel structure building,metal storage buildings |
||

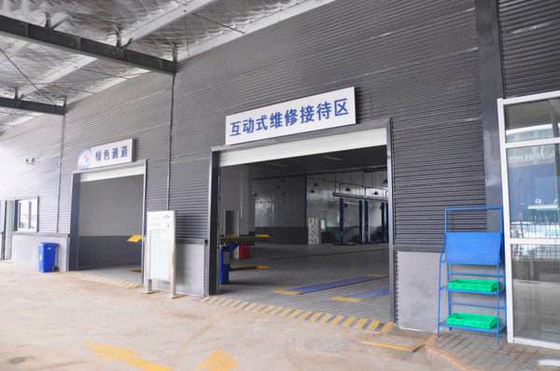

Clean Span Light Steel Frame Structure Workshop Buildings For Auto Service Shop
Clean Span Light Steel Frame Structure Workshop Buildings For Auto Service Shop.The steel frame structure of this light metal shop buildings is welded H-section steel columns and beams that is connected by high strength bolts. Glass wool sandwich panel is used as roof and wall insulation panels.
Prefab steel frame structure buildings is widely used as factory, warehouse, workshops, office buildings, residence buildings, stadiums and other buildings. The building structure system is usually formed by the main framework through linking up the H beam,Column, purlin.Roof and wall using a variety of panels together with other components such as windows and doors. Prefab steel frame structure buildings has the advantages of wide span, large inside space, high strength, light weight, low cost, short construction time, good effect of insulation, good seismic performance, flexible layout,etc.
|
Name |
Clean Span Light Steel Frame Structure Workshop Buildings For Auto Service Shop |
|
Structure Type |
Gable frame, single ridge, clean span or two spans |
|
Length |
40- 100m |
|
Width |
20-80m |
|
Eave Height |
6-15m |
|
Roof Slope |
10% |
|
Gable Wall Column Spacing |
7.5m |
|
Roof |
Glass wool sandwich panel |
|
Wall |
Glass wool sandwich panel |
|
Door |
Sliding door |
|
Window |
Ribbon Skylight |
|
Height difference between indoor and outdoor |
300mm |
|
Main Parts |
Item Name |
Specification |
|
|
|
Q235B, Q345B |
|
H shape, Box, Steel pipe, Hot rolled sheet |
||
|
|
Q235B, Q345B |
|
|
H shape, Steel Truss, Hot rolled sheet |
||
|
|
Q235B, Q345B |
|
|
Steel rod, Steel pipe, Angle steel |
||
|
Roof Purlin |
C or Z shape, Steel purlin |
|
|
|
|
Q235B, Q345B |
|
C or Z shape, Steel purlin |
||
|
Roof |
Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., |
|
|
Wall |
Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., |
|
|
|
Bolts |
Ordinary, High strength |
|
Gutter |
Galvanized Steel plate, Stainless steel |
|
|
Windows |
Aluminum alloy-Glass, Aluminum alloy-shutter, PVC |
|
|
Doors |
Sliding or Rolling door |
|
|
Downpipes |
PVC pipe, Color steel pipe |
|
|
Edge Cover |
Made of color steel sheet thickness 0.5mm |
|
|
Ventilator |
Stainless steel |
|
|
Crane |
Crane in 5 tons to 30 tons |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
We will provide installation drawing for each project to guide installation. If you need, we could dispatch our engineer to construction site to guide installation or we install it directly.
The following question we need to know before making the price. Just feel free to fill what you know.
|
1 |
Location (where will be built?) |
_____country, area |
|
2 |
Size: length*width*height |
_____mm*_____mm*_____mm |
|
3 |
wind load (max. wind speed) |
_____kn/m2, _____km/h, _____m/s |
|
4 |
snow load (max. snow height) |
_____kn/m2, _____mm |
|
5 |
anti-earthquake |
_____level |
|
6 |
brickwall needed or not |
If yes, 1.2m high or 1.5m high |
|
7 |
thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much |
|
8 |
door quantity & size |
_____units, _____(width)mm*_____(height)mm |
|
9 |
window quanity & size |
_____units, _____(width)mm*_____(height)mm |
|
10 |
crane needed or not |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
