Steel Frame Structure Logistics Warehouse Buildings With Large Span

Steel Frame Structure Logistics Warehouse Buildings With Large Span
Steel Frame Structure Logistics Warehouse Buildings With Large Span Steel Frame Structure Logistics Warehouse Buildings With Large Span Steel Frame Structure Logistics Warehouse Buildings With Large Span Steel Frame Structure Logistics Warehouse Buildings With Large Span

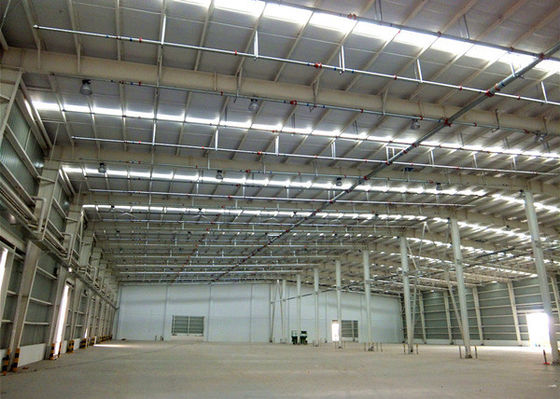

Large Image :  Steel Frame Structure Logistics Warehouse Buildings With Large Span

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0092
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Steel Frame Structure Logistics Warehouse Buildings With Large Span

Description
Features: Large Span Steel Structure Warehouse Application: Steel Frame Structure Logistics Warehouse Buildings
Type: Prefab Steel Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
High Light:

steel structure building

,

metal storage buildings



Steel Frame Structure Logistics Warehouse Buildings With Large Span



Steel Frame Structure Logistics Warehouse Buildings With Large Span . Steel frame structure buildings has the character such as Light weight, high strength, large span: Although the density of steel is larger than other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span. So, it is also used as the logistics building.



We are General contractor for prefabricated steel structure building. Our sevice for this project include designing, fabrication for main steel structure and secondary steel, installation.



Specification of steel structure logistics warehouse:



Item name Specification Material Parameter Technical Treatment
Column H shaped steel  Q235B,Q345B Paint or Hot dip galvanized
Beam H shaped steel  Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod,Steel pipe,Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass,Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized,304
Downpipe PVC pipe,Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B



Our steel structure production line:

The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high. All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.

Steel Frame Structure Logistics Warehouse Buildings With Large Span 0



Our service:



1.  Structural steel fabrication, painting , galvanizing , pre-assembly

2.  Designing, fabrication and installation for Prefabricated steel structure building.

3.  Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4.  Engineering consulting service



How to install:



We will design the construction drawing for each project to guide installation. For abroad project, we could dispatch our engineer to guide installation on site or our construction team construct on site.

Steel Frame Structure Logistics Warehouse Buildings With Large Span 1

How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
