Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel

Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel
Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel

Large Image :  Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0091
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel

Description
Features: Architectural Structural Steel Application: Arch Roof Steel Building
Type: Curved Structural Steel Beam Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
High Light:

steel building structures

,

steel truss structure



Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel



Project Description:

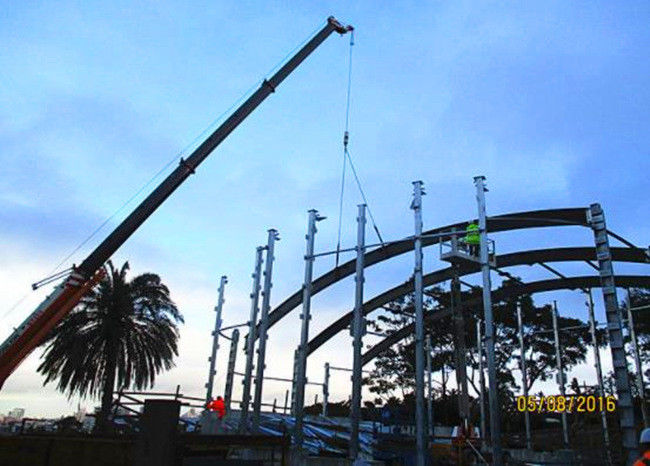

Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel. This is a Curved Steel beam Arc Roof Building used to be a warehouse building. There are two main points in the construction of curved roofs of this project: one is the precision of the production of H-shaped steel curved beams; the other is the construction accuracy of the installation of roofing profiled steel plates.

Since the roof steel beam is curved, it is necessary to process the conventional linear H-shaped steel beam into an arc shape during the production of the steel beam, so as to avoid the occurrence of a broken line shape of the steel beam during processing.



Specification of steel structure :



Item name

Specification Material Parameter Technical Treatment
Column H shaped steel, Q235B,Q345B Paint or Hot dip galvanized
Beam H shape steel, arc shaped steel beam Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod,Steel pipe,Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass,Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized,304
Downpipe PVC pipe,Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B



Our steel structure production line:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel 0

Our service:

1.  Structural steel fabrication, painting , galvanizing , pre-assembly

2.  Designing, fabrication and installation for Prefabricated steel structure building.

3.  Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4.  Engineering consulting service

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Curved Architectural Structural Steel Beam / Arch Roof Building Structure Steel 1



How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m

Contact Details
Qingdao Ruly Steel Engineering Co.,Ltd

Contact Person: steven

Send your inquiry directly to us (0 / 3000)
