Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings

Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings
Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings

Large Image :  Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0063
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Ton Per Month

Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings

Description
Features: Steel Plant Buildings Application: Large Span Pre Engineered Metal Buildings Structure, Steel Plant Buildings, Steel Factory Building
Type: Steel Structure Construction Raw Steel Material: Q235B, Q355B, ASTM A36,
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Service: Design,Fabrication, Installation
High Light:

prefab metal buildings

,

steel frame construction



Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings

Description for Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings:

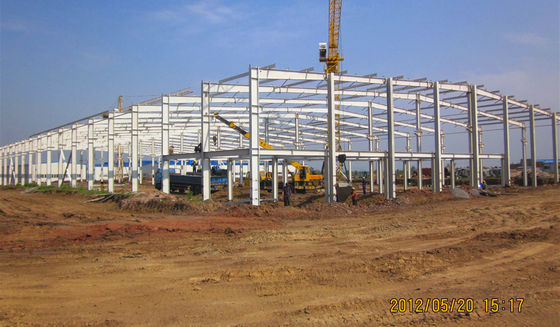

Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings. This Prefabricated large span steel workshop steel structure industrial building​ is used as a electric appliance workshop. It also sets up electric single girder crane in it. We are the General Contractor for this project that our work scope include designed the drawing, fabricated all the steel structure components and roof and wall sandwich panel, and intstallation it then.



Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span.

Project information of Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings:



Name

Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings

Structure Type Portal frame, single ridge, three span
Length 120m
Width 60m
Eave Height 11m
span  25 m for each span
Steel structure quantity 550 Ton
Column&Beam  H-section steel
Roof & Wall sandwich panel

75mm Glass wool sandwich panel

Door Sliding door
Window Ribbon Skylight



Main parts of the steel structures and technical parameters:



No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall 75mm Glass wool sandwich panel
18 Canopy 75mm Glass wool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings



Steel Designing & Detailing:

We have a dedicated steel structure engineering design department and research and development department, and established an independent and complete steel structure engineering design, optimization and deepening design system. Establishing engineering materials than building materials, we not only control the reliability and economy of the structure, but also the categories, performance, selection and combination of traditional enclosing materials and new maintenance materials. Our design is not only more applicable, safer, more economical, but also rich in architectural beauty.

Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings 0


Our steel structure fabrication factory:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
Large Span Pre Engineered Metal Buildings Structure Construction / Steel Plant Buildings 1



How to quote:


The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
