|Features:||Industrial Steel Buildings||Application:||Heavy Industrial Steel Structure Workshop|
|Raw Steel Material:||Q235B, Q355B, ASTM A36,||Surface Treatment:||Painting Or Hot-dip Galvanize|
|Service Life:||50 Years||Wall And Roof:||Glass Wool Sandwich Panel|
|Columns And Beam:||H Section Column&Beam, Latticed Column||Service:||Design,Fabrication, Installation|
industrial steel structure,
industrial metal buildings
Industrial Steel Buildings Heavy Engineering Steel Structure Workshop Construction

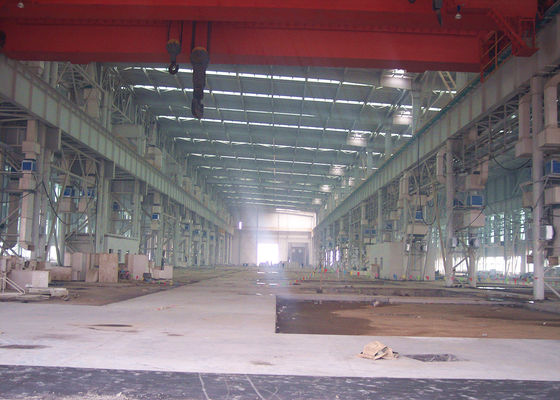

Industrial Steel Buildings Heavy Engineering Steel Structure Workshop Construction. This is a heavy engineering steel structure workshop for oil&chemical equipment production line. The building area is 23000 square meters, because the height reaches 33.3m and the mega overhead crane in the workshop that the capacity reaches 600 Ton, the steel quantity for this project is very large, we fabricate 5500 tons steel structure for this project. The section height for crane beam reaches 4 m. To reduce the steel quantity, Latticed steel column and honeycomb beam are also used.
Our service for this porject include fabrication for the steel structure and installation for steel structre, crane, wall&roof sandwich panel.
New workshop with covered area of 23,000m².
|Name||Heavy Industrial Steel Structure Buildings Heavy Engineering Steel Workshop|
|Structure Type||portal frame, multi ridge|
|span||38 m + 36 m + 30 m|
|Steel structure quantity||5500 Ton|
|Overhead crane capacity||One 600/120t ; Two 200/60t;|
|Crane beam section height||2.5m and 4.0m|
|Column&Beam||H-section steel, latticed column, honeycomb beam|
|Roof & Wall sandwich panel||
Glass wool sandwich panel
|Main Steel Frame Structure|
|Main steel structure||H-section steel, latticed column, honeycomb beam: Raw steel material is Q345, alkyd painting, two primary painting, two finish painting.|
|High strength bolt||Grade 10.9|
|Turn buckle bolt||M20+2, steel Q235, processing|
|Anchor bolt||steel Q235, processing|
|Ordinary bolt||Galvanized bolt|
|Ordinary bolt||Galvanized bolt|
|Batter brace||Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)|
|Fittings & accessories||Nails, glue etc.|
Large Latticed steel column transport to construction site:
Lifting for steel beams:
Crane beam fabricaiton in our steel structure fabrication factory:
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
The following question we need to know before making the price. Just feel free to fill what you know.
|1||Location (where will be built?)||_____country, area|
|3||wind load (max. wind speed)||_____kn/m2, _____km/h, _____m/s|
|4||snow load (max. snow height)||_____kn/m2, _____mm|
|6||brickwall needed or not||If yes, 1.2m high or 1.5m high|
|7||thermal insulation||If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
|8||door quantity & size||_____units, _____(width)mm*_____(height)mm|
|9||window quanity & size||_____units, _____(width)mm*_____(height)mm|
|10||crane needed or not||If yes, _____units, max. lifting weight____tons; max. lifting height _____m
Contact Person: steven
