Product Details:
|
| Features: | Light Steel Structure Buildings | Application: | Steel Structure Granary |
|---|---|---|---|
| Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Steel Cladding Sheet | Working Scope: | Design,Fabrication, Installation |
| High Light: | Q355B Prefab Steel Structure Warehouse,Prefab Steel Structure Warehouse Granary,Q355B Steel Structure Granary |
||

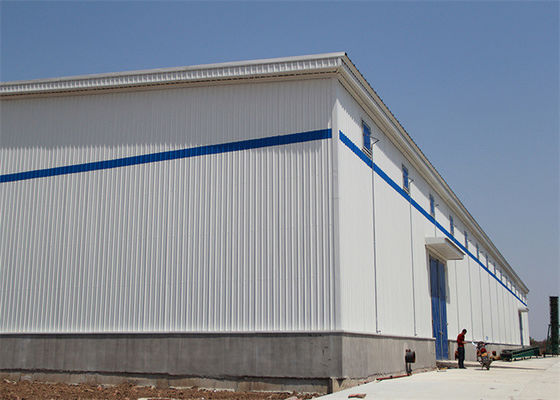

Steel Structure Granary Prefab Steel Structure Warehouse
Steel Structure Granary Prefab Steel Structure Warehouse.The granary structure design, construction methods and material selection have been scientifically optimized, while improving the performance of the granary, it has also got rid of the traditional granary construction mode, so that the cost-effectiveness of the granary has been qualitatively improved. It is an integrated technological innovation formed by organically combining a number of new technologies and new materials.
For such project, our service include design, fabrcication for all the steel structure in our factory, installation on site.
|
Name |
Steel Structure Granary Prefab Steel Structure Warehouse |
|
Structure Type |
Gable frame, single ridge, clean span or two spans |
|
Length Scope |
10- 150m |
|
Width Scope |
10-80m |
|
Eave Height Scope |
4-20m |
|
Roof Slope |
10% |
|
Gable Wall Column Spacing |
7.5m |
|
Roof |
Sandwich panel or single layer steel cladding sheet |
|
Wall |
Sandwich panel or single layer steel cladding sheet |
|
Door |
Sliding door, roller door, lifting door. |
|
Window |
Fixed window, sliding window |
| Ventilator | Unpower ventilator, electric ventilator, fans |
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
