Steel Cladding Q345 Logistics Prefabricated Metal Building

Steel Cladding Q345 Logistics Prefabricated Metal Building
Steel Cladding Q345 Logistics Prefabricated Metal Building Steel Cladding Q345 Logistics Prefabricated Metal Building Steel Cladding Q345 Logistics Prefabricated Metal Building

Large Image :  Steel Cladding Q345 Logistics Prefabricated Metal Building

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0240
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Steel Cladding Q345 Logistics Prefabricated Metal Building

Description
Application: Logistics Warehouse Buildings Usage: Steel Structure Logistics Buildings ,Steel Structure Workshop
Type: Prefabricated Steel Frame Buildings Our Service: Design, Fabrication, Construction
Service Life: 50 Years Surface Treatment: Painting Or Hot-dip Galvanize
Wall And Roof: Steel Cladding Columns And Beam: H Section Column&Beam
High Light:

Logistics Prefabricated Metal Building

,

Q345 Prefabricated Metal Building

,

Alkyd Painting Steel Structure Workshop

Logistics Warehouse Buildings Construction / Steel Structure Logistics Buildings



Project information:

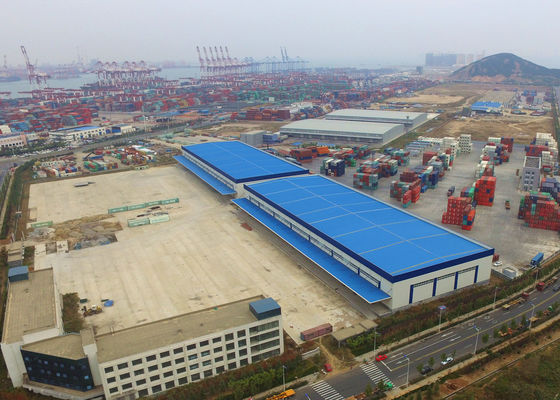

We Design & Fabrication & Construction two prefab steel structure warehouse as Logistics Warehouse Buildings , the size of each warehouse is 15,000m2. The main steel frame structure is consisted of H-section steel beam and column that is fabrication in our steel structure fabrication factory then transport to the construction site for installation. This Logistics Warehouse Buildings is near the Qingdao port. It is used for the logistics and storage of the internation cargo in Qingdao port.



We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.





Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe



Steel structure fabrication in our factory:



Steel Cladding Q345 Logistics Prefabricated Metal Building 0



Installation:



1: We provide construction drawing before installation.

2. Then our engineer guide on site for installation

Steel Cladding Q345 Logistics Prefabricated Metal Building 1



Why choose prefab steel structure buildings?



1 Light weight, high strength and large span: Although the density of steel is larger than other building materials, its strength is very high. Under the same force condition, the steel structure has small weight and can be made into a structure with a large span.
2 Short construction period The main components of the plant are prefabricated in the factory. After being transported to the site, the installation is carried out, and the assembly work is convenient.
3 High fire resistance When the surface temperature of steel is within 150 °C, its strength changes little. When the temperature exceeds 150 °C, its strength drops significantly. Fire-retardant coatings are generally applied to the surface of the steel structure to form a protective film that enhances the fire endurance of the component. Of course, the reasonable division of the fire compartment is also very important for the use of fire shutters.
4 Anti-seepage and waterproof the infiltration of rainwater is mainly through nodes or gaps. To prevent seepage and waterproof, it is necessary to use concealed fixing after the sealing gasket is used at the screw mouth, and sealant or welding treatment is used at the joint of the plate. It is good to use a long plate to eliminate the lap joint, and the swell is tightly waterproofed at various joints.
5 Sound insulation Fill the metal roofing layer with soundproofing material (usually glass wool), or apply heat-reflective coating on the metal tile surface.
6 Ventilation and cooling Generally high-architecture workshops, no extra-high-power heating equipment, personnel are not very dense, and there is no odor or dust. The roof fan + gas building can be used. For steel structures with higher structure and larger span, the best is to install a large exhaust fan on the roof to exhaust the air; to form indoor negative pressure; press a lot of fresh air into the workshop from the surrounding of the workshop to form air. Convection; the effect is better.
7 Good lighting Install lighting panels or lighting glass at specific locations on the roof. Considering the service life of the sunroof and the coordination of the roof panels, the joints must be waterproof.
