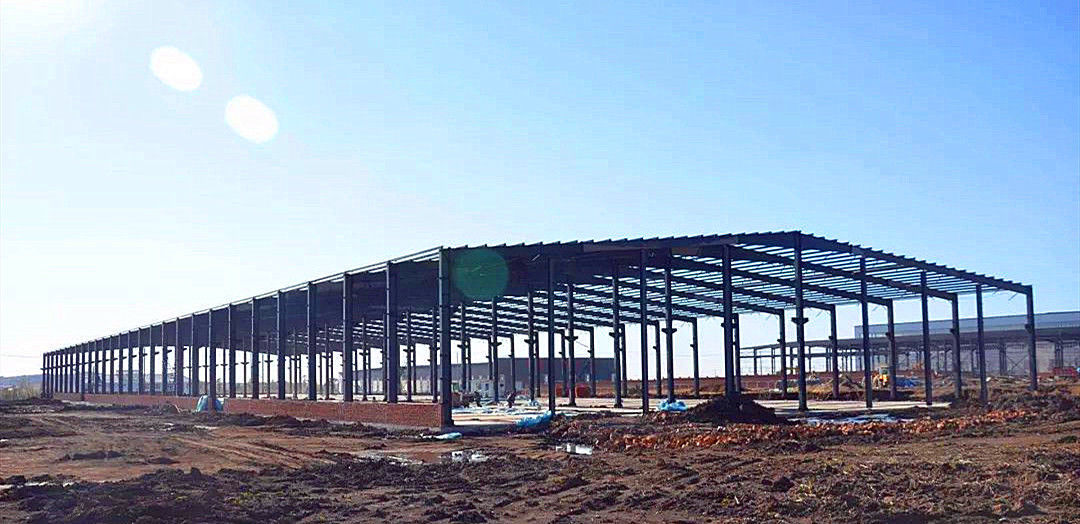

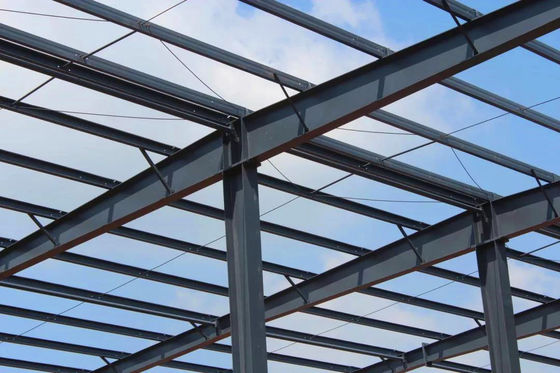

Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design

Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design
Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design

Large Image :  Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0221
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design

Description
Features: Warehouse Structure Design Application: Pre Engineered Buildings,Steel Construction
Type: Steel Structure Warehouse Raw Steel Material: Q235B, Q355B
Working Scope: Design,Fabrication, Installation Surface Treatment: Painting
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet
High Light:

steel structure building

,

metal warehouse construction

,

100m Steel Construction Warehouse Structure



Pre engineered Buildings Steel Construction Warehouse Structure Design



Pre engineered Buildings Steel Construction Warehouse Structure Design.  We are a middle-sized steel structure factory from Qingdao, China. Normally, our business could mainly divide into two parts, one is steel structure fabrication such as H-section steel beam&column, special-shaped steel, angle steel, purlin,etc and one is provide integrated services including design, fabrication, installation for prefab steel buildings such as steel structure warehouse, workshop, multi floors buildings.  Prefabricated steel structure warehouse buildings are destined to have a strong construction market share due to their beautiful appearance, short construction period, high degree of industrialization, and resource reuse. The cost of steel structure workshops is also a concern for many people. Controlling the cost of steel structure workshops and giving full play to the technical advantages of steel structure workshops are the focus of many steel structure companies.



Name

Pre engineered Buildings Steel Construction Warehouse Structure Design

Structure Type

Gable frame / portal frame , single ridge, clean span or two spans

Length

40- 100m

Width

20-80m

Eave Height

6-15m

Roof Slope

10% ~ 15%

Gable Wall Column Spacing

7.5m

Roof

Steel cladding sheet,  sandwich panel

Wall

Steel cladding sheet, sandwich panel

Door

Sliding door, roller up door,etc.

Window

Ribbon Skylight

Height difference between indoor and outdoor

300mm



Material list and technical parameters:



Item name Specification Material Parameter Technical Treatment
Column H-section steel Q235B,Q345B Paint or Hot dip galvanized
Beam H-section steel Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod,Steel pipe,Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. Steel T=0.426~0.8mm,insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet,T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass,Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel,stainless steel,PC Paint or Hot dip galvanized,304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized,304
Downpipe PVC pipe,Color steel pipe T=0.5mm Φ110,160,200 Paint
Bolt Ordinary, high strength 10.9S,4.8s Hot dip galvanized
Anchor bolt Steel rod M24,M27 M30 Q235B



Our service:



1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design 0



Our steel structure production line:



The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design 1


Packing & loading

Durable Pre Engineered Buildings Steel Construction Warehouse Structure Design 2
