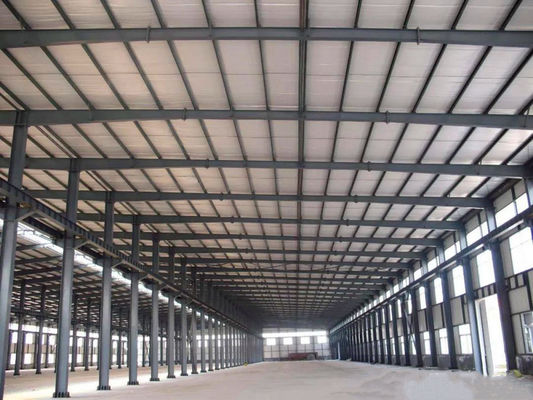

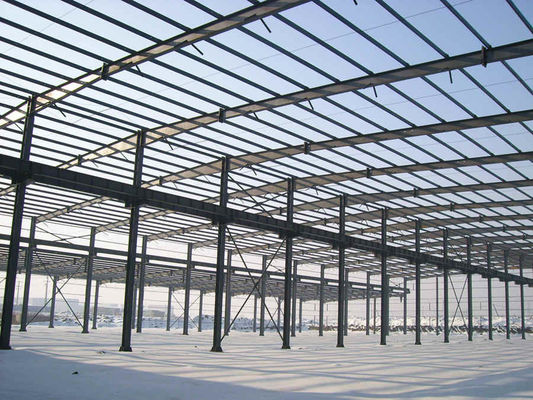

Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction

Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction
Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction

Large Image :  Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0199
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction

Description
Features: Large Span Metal Building Frame Construction Application: Prefabricated Steel Structure Warehouse
Type: Prefab Steel Frame Structure Warehouse Raw Steel Material: Q235B, Q355B, ASTM A36
Beams&Columns: H-section Steel Process Criterion: GB, AWS D1.1, AS4100-1998, EN1090
Surface Treatment: Painting Wall And Roof: Rock Wool Sandwich Panel
Working Scope: Design,Fabrication, Installation Service Life: 50 Years
High Light:

steel structure building

,

metal storage buildings

,

ASTM A36 Prefabricated Steel Structure Warehouse



Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction



Project Information:



Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction. This is a large span steel frame structure warehouse that is built to process and store Motorcycle Engine.This steel building structure system is formed by the main framework through linking up the H beam,Column, purlin.Roof and wall using a variety of panels together with other components such as windows and doors. It also has 5 Tons overhead cranes on each span.



The advantages of the steel structure buildings include simple design structure, light weight, high strength, convenient production and installation, large span of plant space, short construction period, low price and strong earthquake resistance. It is a structure widely used in industrial plants, and has gradually replaced concrete structures.



Project information for this prefabricated steel frame structure buildings:



Name Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction
Structure Type Single ridge, multi spans
Length 120m
Width 60m
Eave Height 12m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof                                  Rock wool sandwich panel
Wall Rock wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Capacity of overhead crane 5 Tons



Specification of steel structure material:



Steel Frame H section steel Q235/Q345 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window



Our steel structure fabrication factory:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction 0



Packing and transport:



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Prefabricated Steel Structure Warehouse / Large Span Metal Building Frame Construction 1
