Product Details:
|
| Raw Steel Material: | Q235B, Q355B | Surface Treatment: | Painting |
|---|---|---|---|
| Shot Blasting Level: | Sa 2.5 | Service Life: | 50 Years |
| Wall And Roof: | Glass Wool Sandwich Panel | Type: | Steel Frame Structure Workshop |
| Working Scope: | Design,Fabrication, Installation | Application: | Car Maintenance Shop, Auto Repair Shops |
| High Light: | steel frame building,prefab metal buildings |
||

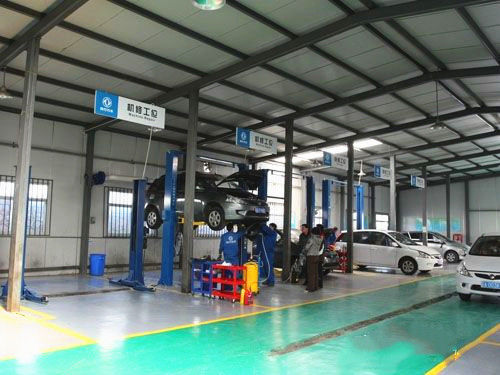

Steel Workshop Buildings Metal Garage Construction For Car Repair Shops
This is a Steel Workshop Buildings Metal Garage Construction For Car Repair Shops. The steel frame structure of this light metal shop buildings is welded H-section steel columns and beams that is connected by high strength bolts. Glass wool sandwich panel is used as roof and wall insulation panels. We could design it in clean span or double spans. It also has office and storage buildings inside.
Prefab steel frame structure buildings is widely used as factory, warehouse, workshops, office buildings, residence buildings, stadiums and other buildings. The building structure system is usually formed by the main framework through linking up the H beam,Column, purlin.Roof and wall using a variety of panels together with other components such as windows and doors. Prefab steel frame structure buildings has the advantages of wide span, large inside space, high strength, light weight, low cost, short construction time, good effect of insulation, good seismic performance, flexible layout,etc.
For such project, we could design the drawing, fabricate all the steel structure components, delivery and install it as your request.
|
Name |
Steel Workshop Buildings Metal Garage Construction For Car Repair Shops |
|
Structure Type |
Gable frame, single ridge, clean span or two spans |
|
Length |
40- 100m |
|
Width |
20-80m |
|
Eave Height |
6-15m |
|
Roof Slope |
10% |
|
Gable Wall Column Spacing |
7.5m |
|
Roof |
Glass wool sandwich panel |
|
Wall |
Glass wool sandwich panel |
|
Door |
Sliding door |
|
Window |
Ribbon Skylight |
|
Height difference between indoor and outdoor |
300mm |
| No. | Item | Details of steel structure building or steel frame | |
| 1 | Material | Material | carbon structural steel |
| 2 | Produce | Lead time | Normallly 45days after down payment, also according to quantity. |
| 3 | Quality | Certification | Quality certificate from factory, the third party by client request. |
| 4 | Dimensions | Length | H beam: 4000-15000mm |
| 5 | Thickness: | web plate: 6-32mm | |
| 6 | wing plate: 6-40mm | ||
| 7 | Height | 200-1200mm | |
| 8 | Color | According to customers | |
| 9 | Size | MOQ is 1000 m2, width * length * eave height, | |
| 10 | Main components | Base | Cement and steel foundation bolts |
| 11 | Main frame | H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe | |
| 12 | Secondary frame : | galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc. | |
| 13 | Material | Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS, | |
| 14 | Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
| 15 | Column | X-type, tree type ,lattice, Cross, Box etc. | |
| 16 | Bolt | Plain bolt and High-strength bolt | |
| 17 | Roof & wall | PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet | |
| 18 | Canopy | steel sheet, PU sandwich panel, Rockwool sandwich panel | |
| 19 | Door | Sliding or rolling door | |
| 20 | Window | Aluminium alloy window | |
| 21 | Surface | Two lays of rust-proof painting or Hot Dip Galvanized | |
| 22 | Sheet | 0.5mm or 0.6mm galvanized sheet | |
| 23 | Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc | |
| 24 | Finishing options | Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized. | |
| 25 | Usages | 1. Steel workshop, steel warehouse, steel structure plant | |
| 26 | 2. Steel web frame structure | ||
| 27 | 3. Steel H-column and steel H-beam | ||
| 28 | 4. Portal frame products | ||
| 29 | 5. High rise building project | ||
| 30 | 6. Others steel structure buildings | ||
We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine. We will show you our production line following the steel structure processing flow as below:
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
