Car Maintenance Shop Steel Structure Workshop Buildings Construction

Car Maintenance Shop Steel Structure Workshop Buildings Construction
Car Maintenance Shop Steel Structure Workshop Buildings Construction Car Maintenance Shop Steel Structure Workshop Buildings Construction Car Maintenance Shop Steel Structure Workshop Buildings Construction

Large Image :  Car Maintenance Shop Steel Structure Workshop Buildings Construction

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0140
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Car Maintenance Shop Steel Structure Workshop Buildings Construction

Description
Application: Car Maintenance Shop, Auto Repair Shops Buildings Shot Blasting Level: Steel Structure Workshop Buildings
Type: Steel Structure Workshop Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Steel Cladding Sheet Working Scope: Design,Fabrication, Installation
High Light:

prefab steel buildings

,

metal workshop building



Car Maintenance Shop Steel Structure Workshop Buildings Construction



Project introduction:

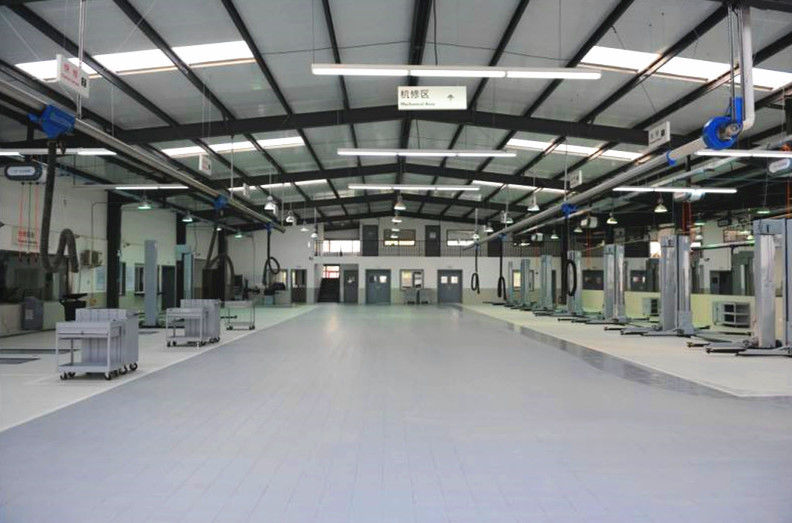

Car Maintenance Shop Steel Structure Workshop Buildings Construction. This is a Steel Structure Workshop Buildings Steel Framing System For Car Maintenance Shop. The steel frame structure of this light metal shop buildings is weld H-section steel columns and beams. Glass wool sandwich panel is used as roof and wall insulation panels.



Prefab steel frame structure buildings is widely used as factory, warehouse, workshops, office buildings, residence buildings, stadiums and other buildings. The building structure system is usually formed by the main framework through linking up the H beam,Column, purlin.Roof and wall using a variety of panels together with other components such as windows and doors. Prefab steel frame structure buildings has the advantages of wide span, large inside space, high strength, light weight, low cost, short construction time, good effect of insulation, good seismic performance, flexible layout,etc.

Name

Car Maintenance Shop Steel Structure Workshop Buildings Construction​

Structure Type

Gable frame, single ridge, two spans

Length

80m

Width

40m

Eave Height

11m

Roof Slope

10%

Gable Wall Column Spacing

7.5m

Roof

Glass wool sandwich panel

Wall

Glass wool sandwich panel

Door

Sliding door

Window

Ribbon Skylight

Height difference between indoor and outdoor

300mm



Our advantage:



1 Professional design team We could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2 Skilled fabrication team and advanced equipment We make the independent production schedule to each project. Our engineers will introduce and train workers for each project before fabrication works start.
3 One-stop service Nearly each steel structure project is customized by our clinets’ requirement. We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4 Professional QC team Professional QC team will guarantee that we will provide the production and service as your request.
5 After sales service If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.



Material list and technical parameters:



Main Parts

Item Name

Specification





Main Steel Frame


Steel Column

Q235B, Q345B

H shape, Box, Steel pipe, Hot rolled sheet


Steel Beam

Q235B, Q345B

H shape, Steel Truss, Hot rolled sheet


Brace

Q235B, Q345B

Steel rod, Steel pipe, Angle steel

Roof Purlin

C or Z shape, Steel purlin




Supporting System


Wall Purlin

Q235B, Q345B

C or Z shape, Steel purlin

Roof

Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,

Wall

Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc.,






Accessories

Bolts

Ordinary, High strength

Gutter

Galvanized Steel plate, Stainless steel

Windows

Aluminum alloy-Glass, Aluminum alloy-shutter, PVC

Doors

Sliding or Rolling door

Downpipes

PVC pipe, Color steel pipe

Edge Cover

Made of color steel sheet thickness 0.5mm

Ventilator

Stainless steel

Crane

Crane in 5 tons to 30 tons



Steel structure production line:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Car Maintenance Shop Steel Structure Workshop Buildings Construction 0

Our service:

1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Car Maintenance Shop Steel Structure Workshop Buildings Construction 1



How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1

Location (where will be built?)

_____country, area

2

Size: length*width*height

_____mm*_____mm*_____mm

3

wind load (max. wind speed)

_____kn/m2, _____km/h, _____m/s

4

snow load (max. snow height)

_____kn/m2, _____mm

5

anti-earthquake

_____level

6

brickwall needed or not

If yes, 1.2m high or 1.5m high

7

thermal insulation

If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former

8

door quantity & size

_____units, _____(width)mm*_____(height)mm

9

window quanity & size

_____units, _____(width)mm*_____(height)mm

10

crane needed or not

If yes, _____units, max. lifting weight____tons; max. lifting height _____m
