Product Details:
|
| Application: | Light Steel Frame Building | Type: | Portal Frame Building Warehouse |
|---|---|---|---|
| Classification: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Sandwich Panel | Working Scope: | Design,Fabrication, Installation |
| High Light: | steel structure building,metal storage buildings |
||

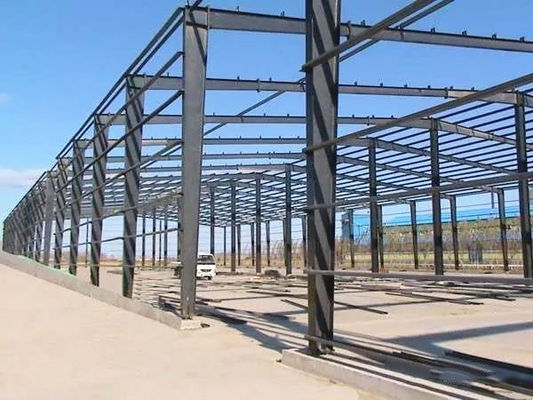

Light Steel Frame Building Steel Structure Portal Frame Building Warehouse
This is a Light Steel Frame Building Steel Structure Portal Frame Building Warehouse that is used for Apparel & Accessories processing. Welded H-section steel column and beams is connected as main frame structure, Galvanized steel floor deck is used to support the concrete on first floor.
Prefabricated portal frame steel structure building can be applied to factories, warehouses, office buildings, hangars, etc. Suitable for single-story, large-span buildings as well as multi-storey or high-rise buildings. The building is simple, the construction period is short, all the components are prefabricated in the factory, and the site is simply assembled, which greatly shortens the construction period. The cost is reasonable, the steel structure is light in weight, the foundation cost is reduced, the construction speed is fast, and it can be completed and put into operation as soon as possible. The comprehensive economic benefits are much better than the concrete structure buildings.
| Main Parts | Item Name | Specification |
Main Steel Frame |
Steel Column |
Q235B, Q345B |
| H shape, Box, Steel pipe, Hot rolled sheet | ||
Steel Beam |
Q235B, Q345B | |
| H shape, Steel Truss, Hot rolled sheet | ||
Brace |
Q235B, Q345B | |
| Steel rod, Steel pipe, Angle steel | ||
| Roof Purlin | C or Z shape, Steel purlin | |
Supporting System |
Wall Purlin |
Q235B, Q345B |
| C or Z shape, Steel purlin | ||
| Roof | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
| Wall | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
Accessories |
Bolts | Ordinary, High strength |
| Gutter | Galvanized Steel plate, Stainless steel | |
| Windows | Aluminum alloy-Glass, Aluminum alloy-shutter, PVC | |
| Doors | Sliding or Rolling door | |
| Downpipes | PVC pipe, Color steel pipe | |
| Edge Cover | Made of color steel sheet thickness 0.5mm | |
| Ventilator | Stainless steel | |
| Crane | Crane in 5 tons to 30 tons |
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
